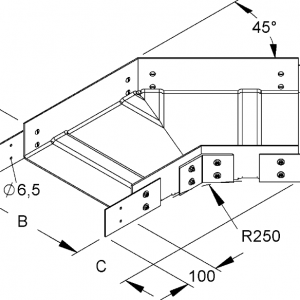

GRP-elbow 45° for cable tray KK, with unperforated side rails, with moulded connector, various dimensions, glass fiber reinforced polyester, pressed, RAL 7032, pebble grey
| Material | GRP (Glass-fibre Reinforced Polyester) |
| Color | Pebble grey |
| RAL | 7032 |
Refer to the product sheets for more information on product details and compatibility.
| Product | EAN | Height (mm) | Width (mm) | Product sheet |
|---|---|---|---|---|
| KKC 50.100 | 4013339953400 | 50 | 100 | |
| KKC 50.150 | 4013339953417 | 50 | 150 | |
| KKC 50.200 | 4013339953424 | 50 | 200 | |
| KKC 50.300 | 4013339953431 | 50 | 300 | |
| KKC 80.100 | 4013339953448 | 80 | 100 | |
| KKC 80.150 | 4013339953455 | 80 | 150 | |
| KKC 80.200 | 4013339953462 | 80 | 200 | |
| KKC 80.250 | 4013339953479 | 80 | 250 | |
| KKC 80.300 | 4013339953486 | 80 | 300 | |
| KKC 80.400 | 4013339953493 | 80 | 400 | |
| KKC 80.500 | 4013339953509 | 80 | 500 | |
| KKC 80.600 | 4013339953516 | 80 | 600 | |
| KKC 110.100 | 4013339953523 | 110 | 100 | |
| KKC 110.200 | 4013339953530 | 110 | 200 | |
| KKC 110.300 | 4013339953547 | 110 | 300 | |
| KKC 110.400 | 4013339953554 | 110 | 400 | |
| KKC 110.500 | 4013339953561 | 110 | 500 | |
| KKC 110.600 | 4013339953578 | 110 | 600 |
