Compatible with our different ranges of cable trays, our supporting systems are available in several finishes and different support structures.
A range of support structures ranging from hot-dip galvanized steel and epoxy, through the stainless steel, loaded polyester reinforced fiberglass.
Dimensions and perforations supports are suitable for Ebo Systems cable trays/ladders. The load capacities are variable according to the type of installation (ceiling, wall …).
FPES
| Height | 45mm |
|---|---|
| Width | 45mm |
| Lengths | 200 – 500mm |
FPDS
| Height | 90mm |
|---|---|
| Width | 45mm |
| Lengths | 200 – 500mm |
HU 5050
| Height | 50mm |
|---|---|
| Width | 50mm |
| Lengths | 205 – 2005mm |
HU 5050 E5
| Height | 50mm |
|---|---|
| Width | 50mm |
| Lengths | 205 – 1005mm |
HU 5050 C1KG
| Height | 50mm |
|---|---|
| Width | 50mm |
| Lengths | 205 – 2005mm |
FPAP
| Width | 45mm |
|---|---|
| Height | 200, 365mm |
| Lengths | 110 – 610mm |
FPAM
| Width | 55mm |
|---|---|
| Height | 50 – 90mm |
| Lengths | 120 – 320mm |
FPCO
| Height | 130mm |
|---|---|
| Width | 100 – 300mm |
| Lengths | 250 – 450mm |
KTA
| Widths | 40 – 50mm |
|---|---|
| Heights | 45 – 90mm |
| Lengths | 110 – 610mm |
KTA E5
| Widths | 40 – 50mm |
|---|---|
| Heights | 45 – 110mm |
| Lengths | 110 – 610mm |
KTAM E5
| Widths | 40mm |
|---|---|
| Heights | 60 – 115mm |
| Lengths | 110 – 410mm |
KTA C1KG
| Widths | 40 – 50mm |
|---|---|
| Heights | 45 – 90mm |
| Lengths | 110 – 610mm |
U 5050 F
| Width | 50mm |
|---|---|
| Height | 50mm |
| Lengths | 200 – 6000mm |
U 5050 E5L
| Width | 50mm |
|---|---|
| Height | 50mm |
| Lengths | 300 – 6000mm |

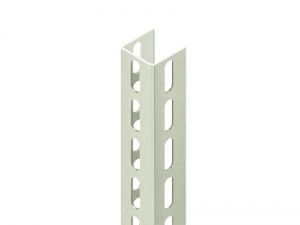

U 5050 C1KG
| Width | 50mm |
|---|---|
| Height | 50mm |
| Lengths | 300 – 2000mm |
HDS 50.50 F
HDS 50.50 E5
HDS 50.50 C1KG

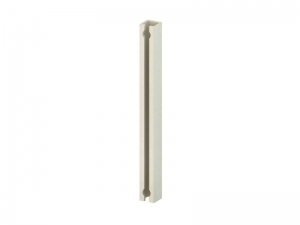

FPAR
| Width | 45mm |
|---|---|
| Height | 45mm |
| Lengths | 500 – 2000mm |
FPPS
| Length | 690mm |
|---|---|
| Width | 113mm |
| Height | To be determined |
You want to see all our products and specifications in details?
