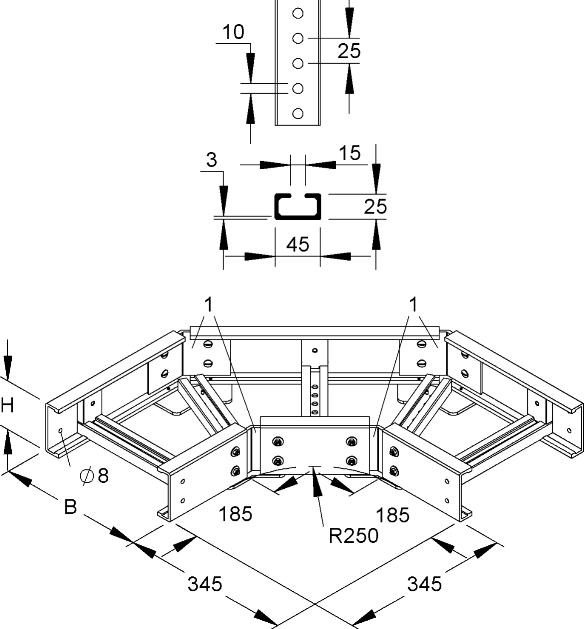

Elbow 90° ULLB

Description

GRP-elbow 90° for cable ladder, with perforated rungs, with unperforated side rails, with connecting perforations, glass fiber reinforced polyester, pultruded, RAL 7032, pebble grey

Material	GRP (Glass-fibre Reinforced Polyester)
Color	Pebble grey
RAL	7032

See available dimensions Check our sales agencies

Dimensions available:

Refer to the product sheets for more information on product details and compatibility.

Product	EAN	Height (mm)	Width (mm)
ULLB 53.150	4013339104413	53	150
ULLB 53.200	4013339104420	53	200
ULLB 53.300	4013339104437	53	300
ULLB 53.400	4013339104444	53	400
ULLB 53.500	4013339104451	53	500
ULLB 53.600	4013339104468	53	600
ULLB 80.150	4013339104475	80	150
ULLB 80.200	4013339104482	80	200
ULLB 80.300	4013339104499	80	300
ULLB 80.400	4013339104512	80	400
ULLB 80.500	4013339104529	80	500
ULLB 80.600	4013339104536	80	600
ULLB 100.150	4013339104161	100	150
ULLB 100.200	4013339104178	100	200
ULLB 100.300	4013339104185	100	300
ULLB 100.400	4013339104192	100	400
ULLB 100.450	4013339104215	100	450
ULLB 100.500	4013339104222	100	500
ULLB 100.600	4013339104239	100	600
ULLB 100.700	4013339104246	100	700
ULLB 100.750	4013339104253	100	750
ULLB 100.800	4013339104260	100	800
ULLB 100.900	4013339104277	100	900
ULLB 150.150	4013339104284	150	150
ULLB 150.200	4013339104291	150	200
ULLB 150.300	4013339104314	150	300
ULLB 150.400	4013339104321	150	400
ULLB 150.450	4013339104338	150	450
ULLB 150.500	4013339104345	150	500
ULLB 150.600	4013339104352	150	600
ULLB 150.700	4013339104369	150	700
ULLB 150.750	4013339104376	150	750
ULLB 150.800	4013339104383	150	800
ULLB 150.900	4013339104390	150	900
